产品简介 PRODUCT INTRODUCTION

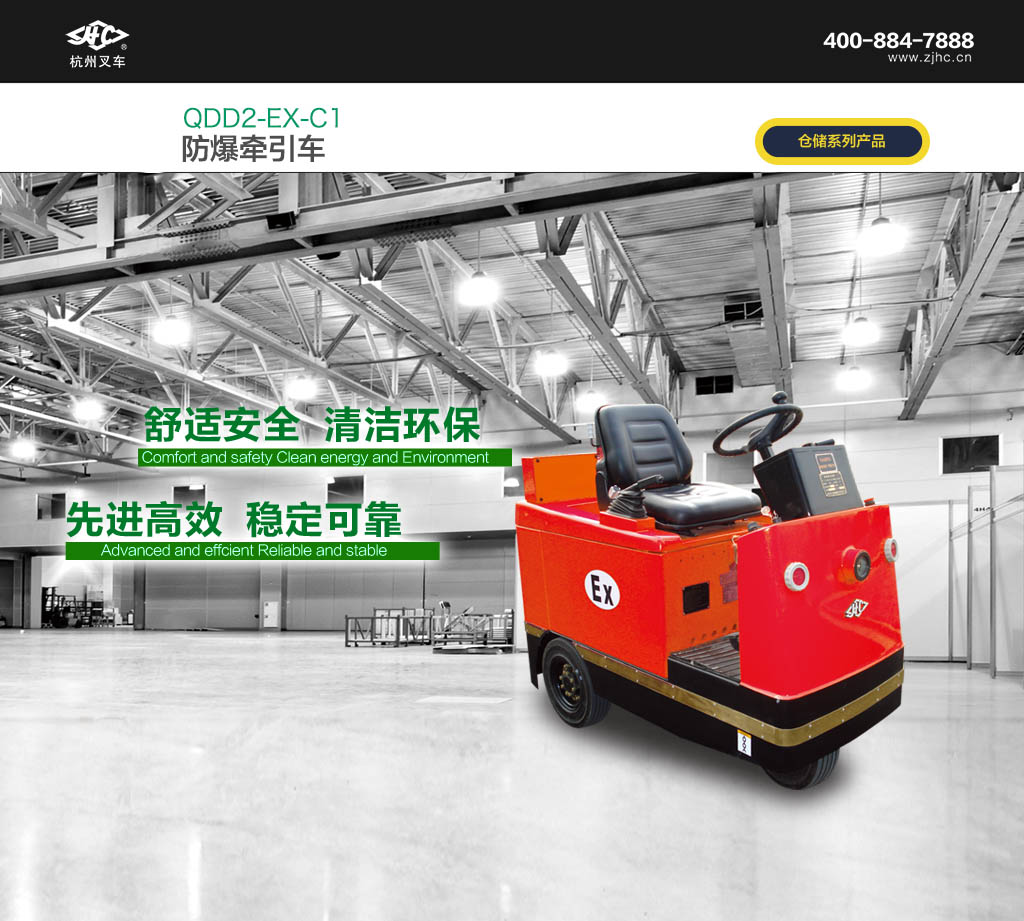

The rated traction weight of this product is 2300kg, which is mainly used to solve the safe operation of ordnance and ammunition materials under the dangerous environment conditions of class II and below in the rear warehouse of the army
Plan. It is the first in China.
Explosion proof measures are adopted for the whole machine, and active explosion-proof technologies such as two-level alarm control of brake temperature and motor temperature are added to greatly improve the explosion-proof reliability.
Adopting AC frequency conversion technology, the control performance is better, more energy-saving and efficient, and the reliability of the control system is greatly improved.
T-type transmission arrangement, central brake and explosion-proof box are designed separately. So that the overall size of the machine is small and the turning radius is small. Meet the needs of the army's cave operation.
The steering adopts slewing bearing and gear transmission, making the steering easy and convenient.
Front wheel tilt back design, with automatic alignment function.
产品参数 PRODUCT PARAMETER
| manufacturer | Hangcha group | ||
|---|---|---|---|
| model | 2T explosion-proof electric tractor | ||
| Traction weight | kg | 2300 | |
| Rated traction（60min） | kg | 56 | |
Maximum traction（5min） | kg | 150 | |
Full load travel speed | km/h | 6 | |
No load running speed | km/h | 10 | |
Minimum turning radius | mm | 1350 | |
electric machinery | kW | 3.0 | |
| Battery | model | 290 | |
| Voltage / capacity | V/Ah | 48/290 | |
| Explosion proof grade | ExsdeⅡBT4 | ||
● If the products and specifications are changed due to improvement, they will be subject to the physical object without further notice.
售后服务Customer Service
● Please contact the nearest subsidiary of Hangzhou Forklift Group Co., Ltd. and authorized distributor.
