产品概述 PRODUCT BRIEF

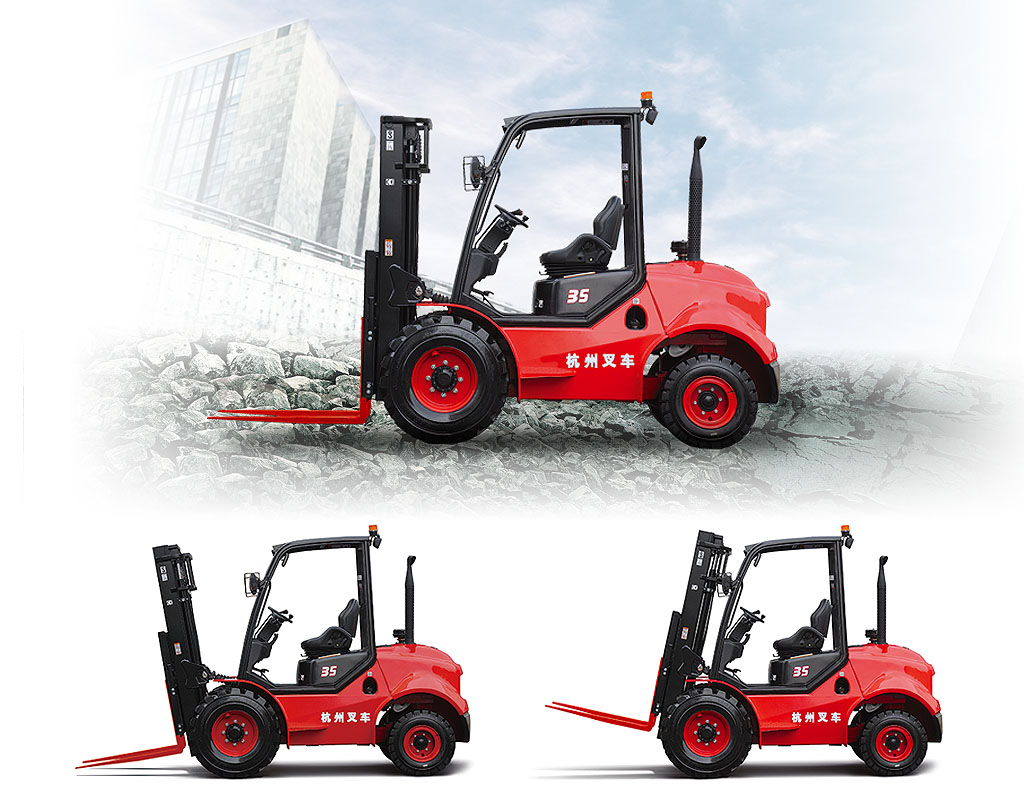

● 2.5-3.5t two-wheel off-road forklift is developed on the basis of XF series internal combustion forklift. It is designed with a number of new technologies and comprehensively improves the reliability, safety, appearance, comfort and easy maintenance of the whole vehicle through technical innovation. The whole vehicle has the following characteristics:
● reliable
1. The full floating hydraulic transmission gearbox of the front two and the rear one provides higher running speed and stronger climbing ability; The drive axle is equipped with wide base deep tread tires, reinforced brakes, bearings, differential with automatic locking function, and reinforced steering axle assembly to better adapt to special working conditions;
2. Two stage intake air filter, super large capacity plate fin radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the whole vehicle and ensure the reliable operation of the engine;
3. Longer and wider wheelbase and front and rear wheelbase, better vehicle stability; Reinforced frame and gantry assembly, large swing angle steering axle, providing good ground clearance and trafficability;
4. The wide use of closed vehicle integrated controller, waterproof connector and built-in oil return and filter device can meet the requirements of severe working conditions.
● energy saving
1. The new load sensing hydraulic steering system is more energy-saving and improves the working efficiency of the whole vehicle;
2. New high-efficiency and energy-saving lighting system, front and rear integrated LED headlights, energy saving and power saving, while greatly improving the performance and service life of lamps;
● comfort
1. The suspension integral roof protection frame, full floating transmission, large volume exhaust muffler and composite engine shock absorber are adopted to effectively improve the vibration and noise of the whole vehicle;
2. The spacious operating space and getting on / off space, the new steering wheel, the new brake micro motion and accelerator control, and the new parking brake effectively improve the handling comfort of the whole vehicle;
3. Widened gantry, good operation field of vision; The use of suspension seats makes driving more comfortable.
● environmental protection
1. Environmental friendly engine is adopted to make the whole vehicle meet the European III and EPA III emission standards;
2. The whole vehicle adopts environmental protection materials to reduce the harm to the environment.
● maintainability
1. The brake oil pot cover on the instrument cover can be easily opened to easily confirm the brake fluid level;
2. The hood can be opened easily and quickly, and the opening angle can reach 80 degrees, which is easy for maintenance and inspection;
3. Two piece front bottom plate design makes maintenance and inspection more convenient;
4. The cover plate of the water tank can be disassembled manually for quick maintenance and inspection;
产品细节 PRODUCT BRIEF
● the whole vehicle adopts LED light emitters to save energy and power, and greatly improve the performance and service life of lamps.
● the whole vehicle adopts environmental protection materials to reduce the harm to the environment.
● increase the driver's rear vision by optimizing the design of the counterweight.
● solid tire, maintenance free and more durable.
● the newly designed gantry system, the instrument panel in the cab moves down, greatly improving the driver's vision in front.
产品配置 PRODUCT CONFIGURATION
Standard configuration
Full floating drive
Jaw type differential lock
Suspended heightening roof protection frame
Suspended safety seat
Hydraulic oil return filter element
Large capacity plate fin radiator
Air pre filter
Rear work light
Alarm lamp
Tilt cylinder jacket
Radiator net cover
Parking assist armrest
Widened fork frame
Widened rack
Front and rear combined LED headlights
Optional devices and accessories
Combined cab
Cab heater
windshield
Left and right rearview mirrors
Fire Extinguisher
User specified color
Seat sensing system
Exhaust fire protection device
Exhaust purification device
Auxiliary multi way valve assembly
Front work light
Three level wide view full free gantry
Special fork
weighing system
Genus
产品参数 PRODUCT PARAMETER
manufacturer | Hangcha group | ||||||
---|---|---|---|---|---|---|---|
model | CPCD25-XW33E-RT | CPCD30-XW33E-RT | CPCD35-XW33E-RT | CPCD25-XW43E-RT | CPCD30-XW43E-RT | ||
Rated lifting capacity | kg | 2500 | 3000 | 3500 | 2500 | 3000 | |
Load center distance | mm | 500 | 500 | 500 | 500 | 500 | |
Front overhang distance | mm | 585 | 600 | 600 | 585 | 600 | |
wheelbase | mm | 1880 | 1880 | 1880 | 1880 | 1880 | |
dead weight | kg | 4670 | 5120 | 5380 | 4670 | 5120 | |
Gantry static height | mm | 2215 | 2350 | 2350 | 2215 | 2350 | |
Total length (length to vertical plane of fork) | mm | 2985 | 3000 | 3000 | 2985 | 3000 | |
Overall width | mm | 1557 | 1599 | 1599 | 1557 | 1599 | |
Fork size (length × width × Thickness) | mm | 1220×122×40 | 1220×122×50 | 1220×122×50 | 1220×122×40 | 1220×122×50 | |
Minimum turning radius | mm | 2900 | 2900 | 2900 | 2900 | 2900 | |
Maximum running speed (no load) | km/h | 26 | 26 | 26 | 26 | 26 | |
Climbing gradient (full load / no load) | (。) | 27 | 22 | 22 | 26 | 21 | |
Engine manufacturer/model | yanmar 4TNE98 | yanmar 4TNE98 | yanmar 4TNE98 | Cummins QSF2.8tNA49 | Cummins QSF2.8tNA49 | ||
Engine power | kW/r/min | 42.1/2300 | 42.1/2300 | 42.1/2300 | 36.5/2500 | 36.5/2500 | |
Tank volume | L | 65 | 65 | 65 | 65 | 65 |
●If the products and specifications are changed due to improvement, they will be subject to the physical object without further notice.
● Please contact the nearest subsidiary and authorized distributor of Hangcha Group Co., Ltd.
