产品概述 PRODUCT BRIEF

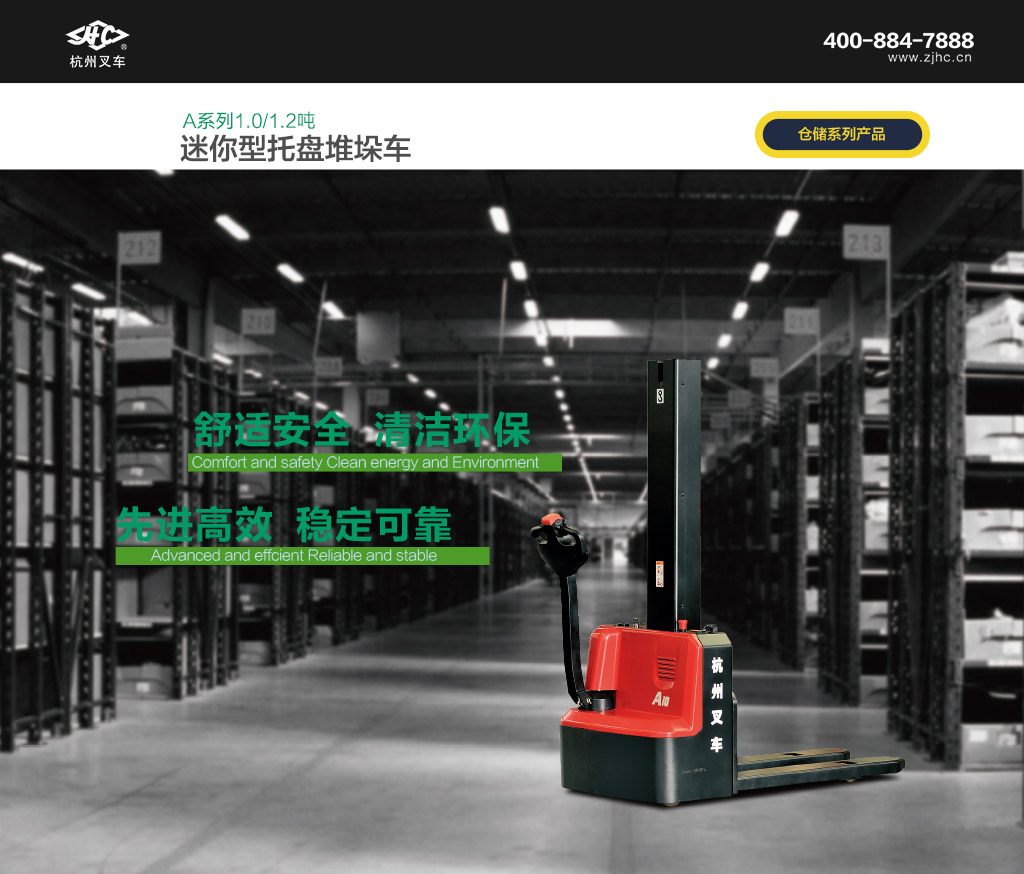

● A series Mini pallet stacker is a new generation of products newly developed by Hangzhou forklift for warehousing and logistics applications. It adopts new permanent magnet drive technology, with advanced performance, comfortable operation, safety and reliability, and low maintenance cost. It is an ideal tool for loading, unloading and carrying palletized goods in warehouses, supermarkets, workshops and families.
01 / appearance

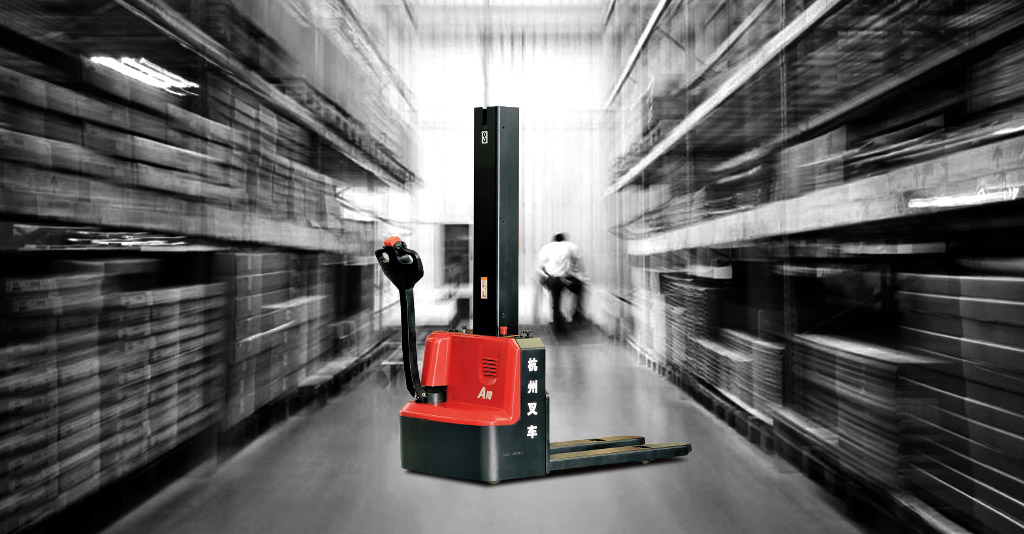

The a series Mini pallet stacker adopts professional appearance industrial design, with smooth lines, dynamic, compact shape, fully considering ergonomics, in line with the new appearance design trend.
A large number of steel plate stamping and injection molding processes are adopted, which are durable, high-grade and meet the requirements of environmental protection.
02 / high sex
The power is strong and the load is 1-1.2 tons, which can meet the handling requirements of most customers.
The permanent magnet walking motor has excellent performance and low calorific value.
The new Curtis permanent magnet control system has excellent control performance, high efficiency and stability.
It has regenerative braking to prevent the vehicle from sliding down.
The hydraulic pump station, switch, plug-in, electric quantity display meter and time meter and other important parts adopt foreign famous brand products.
03 / comfort
The newly developed handle is beautiful and simple, and all operation functions can be easily completed by one hand.
The optimized design of the body structure ensures that the forklift has a wide operating field of vision and is more convenient to get in and out of the pallet.
Built in charger, gel maintenance free battery, easy to use.
It is small in size, light and flexible, and easy to operate. It can also pass through very small channels.
04 / reliability
The frame is of high strength steel plate frame structure, with large residual bearing capacity and long service life.
The four fulcrum design is adopted, the load distribution of driving wheel is reasonable, the wheel has good grip, and at the same time, it ensures good stability and vision.
The whole system adopts imported waterproof connector, all wires and cables have reliable protection, which greatly improves the reliability of the electrical system
International first-class lifting, low vibration and low power.
The flexible connection between hydraulic unit and frame can absorb the vibration transmitted from uneven road surface to hydraulic unit, and increase the reliability of hydraulic unit.
The stamping fork has higher strength and impact resistance, and further improves the operation efficiency with fork tip guidance.
05 / safety
It has release brake, reverse brake and three kinds of emergency braking functions to ensure the safety of driving.
At the same time, it has the function of slope anti sliding to ensure the operation safety.
The emergency reverse button on the head of the handle can effectively prevent the driver from being injured in case of emergency when driving backward.
When the fork is less than a certain height from the ground, it will automatically slow down the descent speed and effectively protect the cargo safety.
06 / maintenance
It is equipped with built-in charger and maintenance free battery as standard, without maintenance.
The display of electric quantity will prompt the user to charge in time.
The rear hood can be completely opened, and the components are clear at a glance, so that the maintenance of the whole machine is very convenient.
All rotating shafts are equipped with lubricating shaft sleeve and oil cup, which is convenient for maintenance and long service life.
It is not convenient to lift the auxiliary wheel from the upper part of the vehicle.
Product configuration PRODUCT CONFIGURATION
Standard configuration
Permanent magnet drive motor
Curtis permanent magnet controller
Hydraulic power unit
Emergency power off switch
Electricity meter
Polyurethane wheel
Fork length 1150 mm
Outer spacing of fork 560mm
1.5m single stage single lifting gantry
Multi function handle
horn
Maintenance free battery
Built in charger
Optional configuration
1.5 ~ 2m gantry
1220 / 1400mm fork length
For cold storage (low temperature protection to - 30 ℃)
Outer spacing of 680mm fork
Block the shelf
Product parameters PRODUCT PARAMETER
| manufacturer | Hangzhou fork group |
|---|
| model |
| 1 ton | 1.2 tons | 1 ton straddle type | 1.2 ton straddle type |
| Rated lifting capacity | kg | one thousand | one thousand and two hundred | one thousand | one thousand and two hundred |
| Load center distance | mm | six hundred | six hundred | six hundred | six hundred |
Maximum lifting height | mm | one thousand and five hundred | one thousand and five hundred | one thousand and five hundred | one thousand and five hundred |
Minimum turning radius | mm | one thousand four hundred and twenty-two | one thousand four hundred and twenty-two | one thousand four hundred and twenty-two | one thousand four hundred and twenty-two |
Maximum driving speed (full load / no load) | km/h | 3.5/4 | 3.5/4 | 3.5/4 | 3.5/4 |
Maximum lifting speed (full load / no load) | mm/h | 140/230 | 120/230 | 140/230 | 120/230 |
Maximum climbing gradient (full load / no load) | % | 6/10 | 6/10 | 6/10 | 6/10 |
| Minimum fork height | mm | eighty-five | eighty-five | fifty | fifty |
| Total weight | kg | five hundred | five hundred | five hundred | five hundred |
| controller |
| direct | direct | direct | direct |
Products and specifications, if there are changes due to improvement, will not be notified, subject to the actual object.
