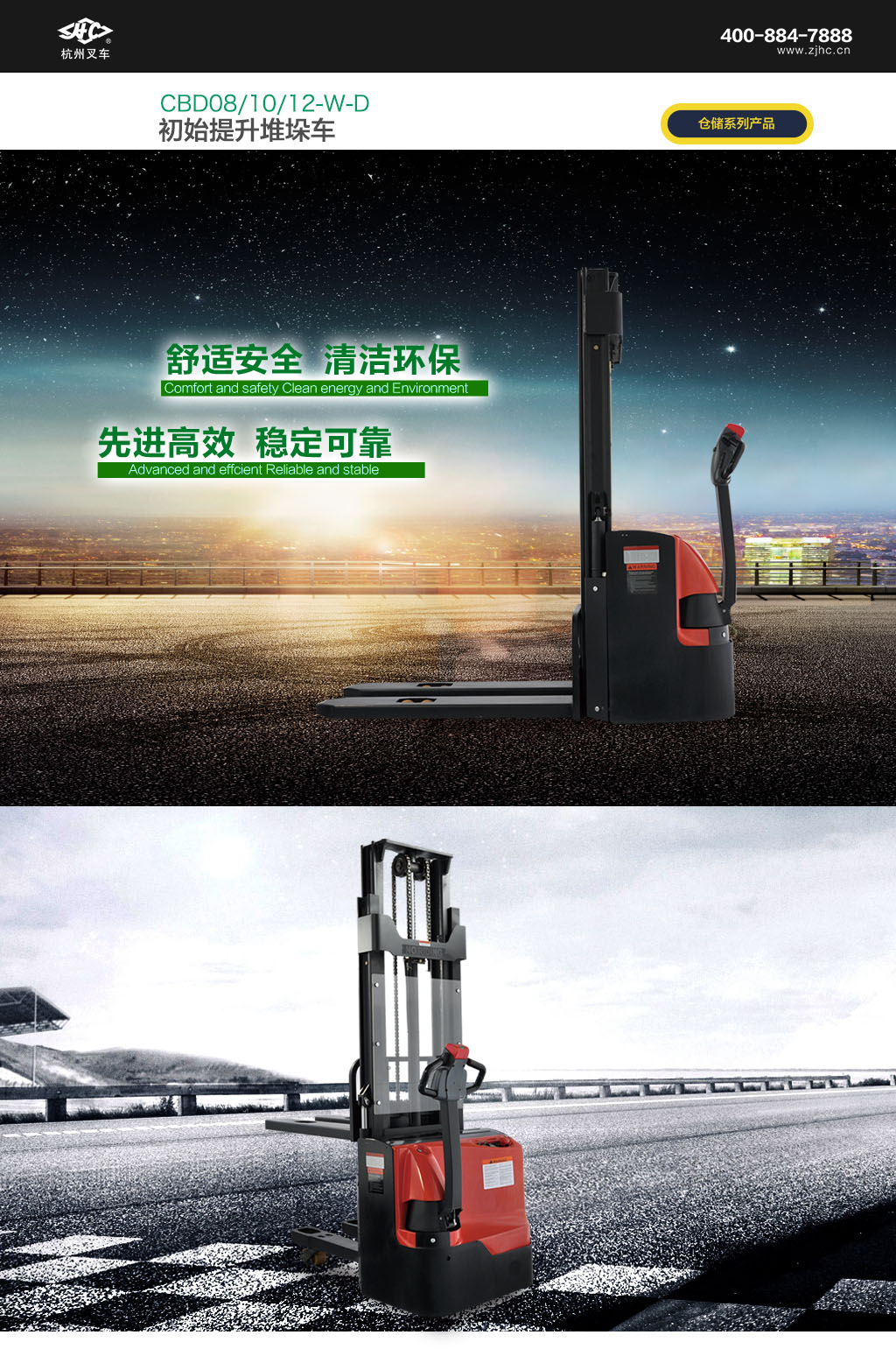

产品简介 PRODUCT INTRODUCTION
Explosion proof hydraulic system Forklift Design, even if the tubing burst, the gantry will not drop rapidly, improving the safety;
Emergency reverse form function, so that the operator can avoid injury;
Emergency power-off switch, when the operation is out of control, it can easily cut off all power supply to avoid emergency;
Multiple lifting limits make stacking safer;
When the fork is lifted to a certain height, the vehicle will automatically switch to the slow mode, which is safer;
The anti-skid braking function can prevent the car from sliding when it is out of control or running on a slope;
Low voltage automatic protection, prolonging battery life.
Product parameters PRODUCT PARAMETER
| manufacturer | Hangzhou fork group |
|---|
| model |
| 0.8 tons | 1.0 tons | 1.2 tons |
| Operation form |
| Walking style | Walking style | Walking style |
| Rated load | kg | eight hundred | one thousand | one thousand and two hundred |
Load center distance | mm | six hundred | six hundred | six hundred |
Fork size | mm | sixty × one hundred and ninety × one thousand one hundred and fifty | sixty × one hundred and ninety × one thousand one hundred and fifty | sixty × one hundred and ninety × one thousand one hundred and fifty |
Passing fork | mm | five hundred and sixty | five hundred and sixty | five hundred and sixty |
Minimum turning radius | mm | one thousand four hundred and forty-two | one thousand five hundred and ten | one thousand five hundred and ten |
running speed (full load / no load) | km/h | 5.0/5.5 | 5.0/5.5 | 5.0/5.5 |
Lifting speed (full load / no load) | mm/s | 140/200 | 110/160 | 110/160 |
Descent speed (full load / no load) | mm/s | 200/300 | 190/180 | 190/180 |
No load slope | % | 8/16 | 8/16 | 8/16 |
Drive motor power | kW | one point two seven | one | one point two seven |
Lifting motor power | kW | two point two | two point two | two point two |
| Rated voltage / rated capacity | V/Ah | four × 6V/224 | 24V/160 | 24V/160 |
Products and specifications, if there are changes due to improvement, will not be notified, subject to the actual object.
after-sale service Customer Service
● Please contact the subsidiary company and authorized distribution service provider of Hangzhou fork Group Co., Ltd.
