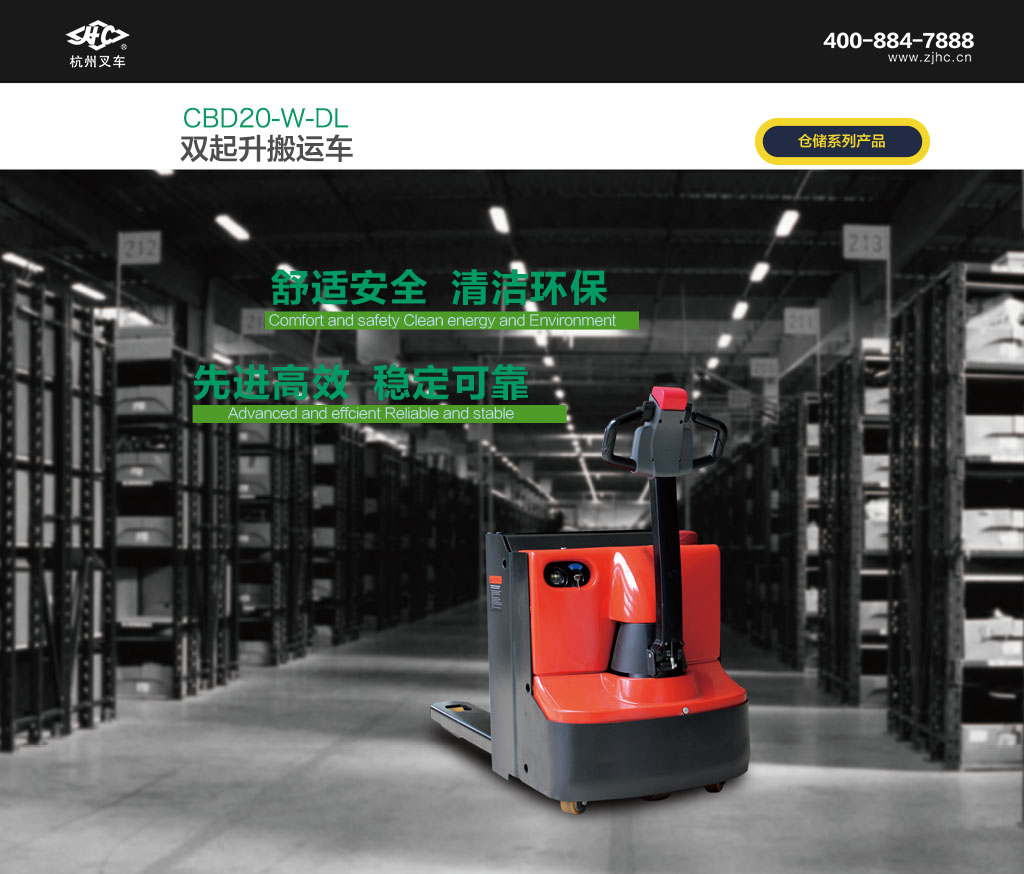

Double lift handling Forklift Product introduction PRODUCT INTRODUCTION
> AC drive system, providing strong power; More accurate control and more stable operation;
High strength vertical gearbox, super long working life;
The hydraulic station with low noise and low fault, the oil cylinder and pipeline after multi-layer detection and testing ensure the high reliability of the hydraulic system;
American amp waterproof connector and electrical parts with reliable quality, all wires and cables are reliably protected and fixed, which greatly reduces the electrical failure;
The H-type portal channel steel has high bending performance and improves the strength of the whole portal frame.
Low voltage automatic protection, prolonging battery life.
Product parameters PRODUCT PARAMETER
| manufacturer | Hangzhou fork group |
|---|
| model |
| Two ton double lift truck |
| Operation form |
| Walking style |
| Rated load | kg | two thousand |
Load center distance | mm | six hundred and fifty |
Fork size | mm | sixty × one hundred and ninety × one thousand one hundred and fifty |
Passing fork | mm | five hundred and sixty |
Minimum turning radius | mm | one thousand six hundred and fifteen |
running speed (full load / no load) | km/h | 5/5.5 |
Lifting speed (full load / no load) | mm/s | 71/121 |
Descent speed (full load / no load) | mm/s | 130/100 |
No load slope | % | 8/16 |
Drive motor power | kW | one point two seven |
Lifting motor power | kW | zero point eight four |
| Rated voltage / rated capacity | V/Ah | 24/150 |
● If the products and specifications are changed due to improvement, they will be subject to the physical object without further notice.
