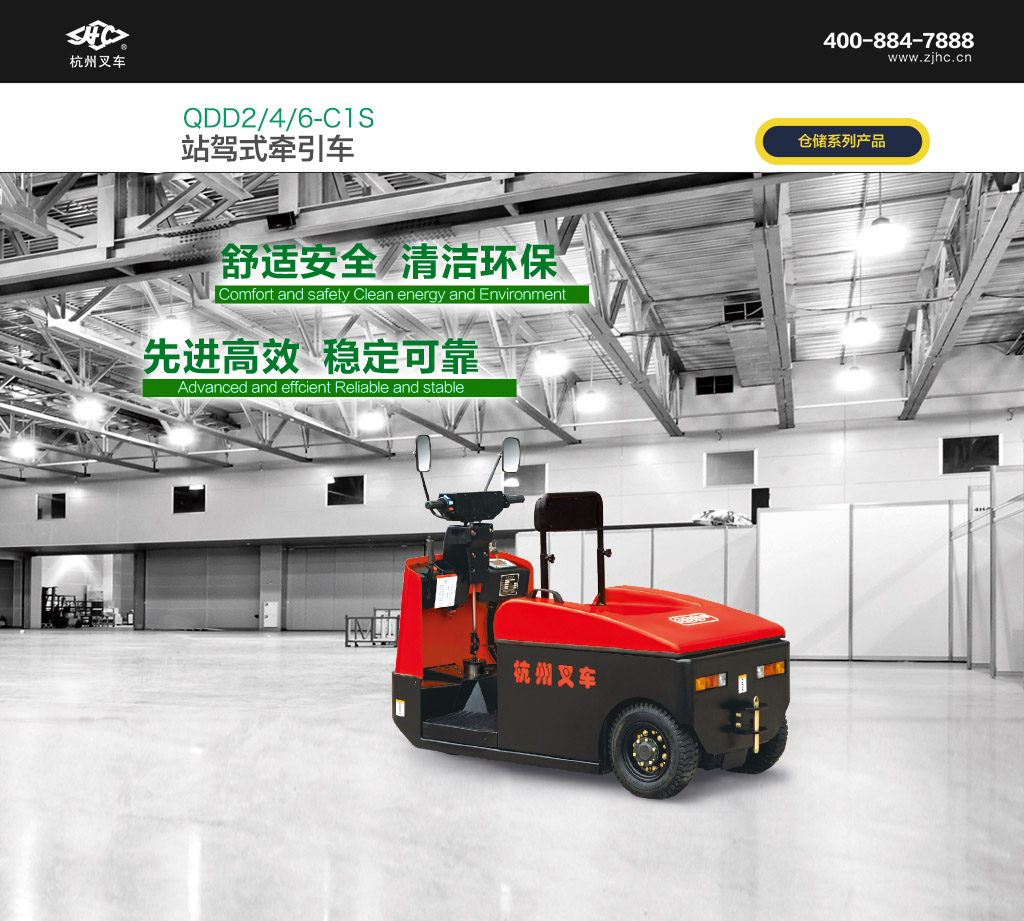

产品简介 PRODUCT INTRODUCTION
01 / appearance
● adopt the internationally popular large arc and streamlined shape, with beautiful and compact appearance and stronger streamline.
02 / stability
● the battery sinks into the bottom of the frame, and the ultra-low center of gravity ensures excellent overall stability.
03 / comfort
● low noise, low vibration, energy saving and environmental protection.
● spacious operation space and ultra-low up and down forklift pedal make it very convenient for operators to get on and off.
● humanized switches, meters, operation pedal positions, adjustable steering wheel and seats greatly improve the driving pleasure of the operator.
● the optional rear drawbar device enables the operator to operate the drawbar in the driving position.
● optional side replacement battery design makes battery replacement easier and convenient.
● the optional semi enclosed canopy and fully enclosed cab can adapt to all-weather operation.
04 / safety
● the newly configured Danaher and Curtis AC control system provides efficient and accurate adjustment performance and various regeneration functions.
● high efficiency and optimized matching AC power system, which extends the working time after one charge.
● large screen LCD power display meter and fault self diagnosis table of international first-class brand are adopted, which can accurately display in harsh environment.
● safety pedal switch and emergency power-off switch ensure driving safety.
05 / maintainability
● the integrated cover makes the maintenance of battery, motor, controller and other electrical components very convenient.
● modular and serial design ensures the universality of the whole series of vehicles.
06 / maintenance
● the motor is maintenance free and the maintenance cost is reduced.
● multiple contactors of DC electric control are omitted and the reliability is improved.
● the cover can be fully opened, and the components are clear at a glance, which makes the maintenance of the whole machine very convenient.
● the AC power system has high efficiency, complete protection functions, and greatly improved reliability and service life.
产品参数 PRODUCT PARAMETER
| manufacturer | Hangcha group | ||||
|---|---|---|---|---|---|
| model | 2T station driving type | 4T station driving type | 6T station driving type | ||
| Traction weight | kg | 2000 | 4000 | 6000 | |
| Rated traction（60min） | kg | 50 | 100 | 150 | |
| Maximum traction（5min） | kg | 200 | 400 | 450 | |
| Full load travel speed | km/h | 6 | 6 | 6 | |
| No load running speed | km/h | 13 | 13 | 13 | |
| Minimum turning radius | mm | 1600 | 1760 | 1760 | |
| electric machinery | kW | 1.95communication | 4.28communication | 4.28communication | |
| Battery | model | 165 | 210 | 275 | |
| Voltage / capacity | V/Ah | 48/165 | 48/210 | 48/275 | |
| Optional capacity: | Ah | 210 | 275 | 350 | |
● if the products and specifications are changed due to improvement, they will be subject to the physical object without further notice.
Customer service
● please contact the nearest subsidiary and authorized distribution service provider of Hangcha Group Co., Ltd.
