产品概述 PRODUCT BRIEF

● A series 3-5t tiller traction forklift is mainly used for short-distance material traction of the production line in the enterprise workshop. This situation often requires frequent boarding and alighting operations. The tiller tractor can greatly improve the efficiency of operation because of the station driving operation mode. In addition, since the work is carried out indoors, the driving mode of electric also greatly improves the environment inside the workshop. Therefore, this product has broad application prospects in automobile manufacturing, logistics companies, warehouses and other fields.

产品简介 PRODUCT INTRODUCTION

01 / appearance

● series a 3-5t tiller tractor adopts professional appearance industrial design. The whole vehicle has smooth lines, full of motion, small shape, full consideration of ergonomics, and conforms to the new appearance design trend.

● a large number of steel plate stamping and injection molding processes are adopted, which are durable, high-grade and meet the environmental protection requirements.

02 / high performance

● standard power distribution direction. So that the operation is light and flexible.

● AC traveling motor is adopted, with excellent acceleration performance, good climbing performance, low heat generation, no carbon brush and maintenance free.

● new Curtis AC control system, accurate and stable control.

● CANbus bus structure makes the communication of the whole machine more rapid and reliable.

● the vehicle has regenerative braking and anti sliding protection on the ramp

● switches, connectors, electric quantity display meters, timetables and other important components shall be foreign well-known brand products.

03 / comfort

● the station driving pedal adopts shock absorption design, which greatly improves the comfort of the operator and reduces the fatigue of long-time driving.

● the backrest height can be steplessly adjusted within a certain range, and the front of the backrest is provided with hip support, which can greatly improve the comfort of the operator.

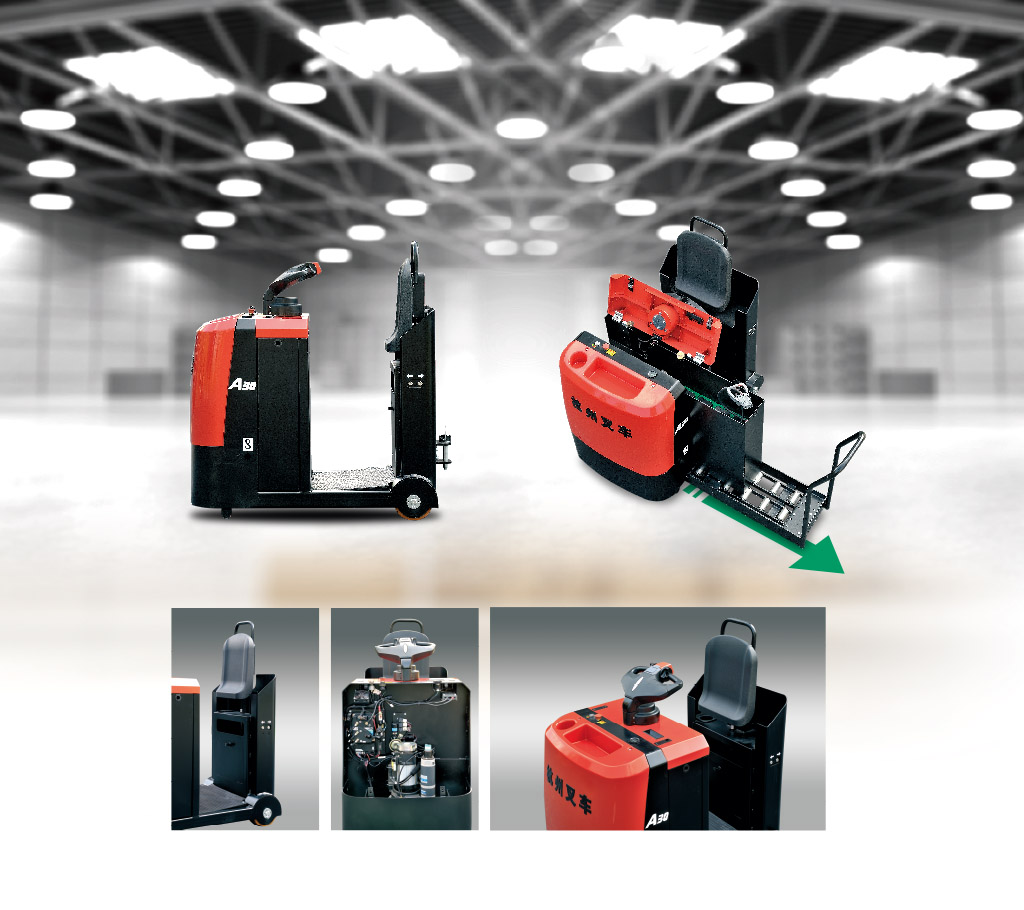

● the standard side is easy to remove, and it is very convenient to replace the battery.

● two sets of jog switches on the left and right are equipped as standard, which greatly improves the convenience of operation.

● ubiquitous storage space for the convenience of the operator.

● small size, light and flexible, easy to operate, and can pass through in a small channel.

04 / reliability

● it adopts three fulcrum design and is equipped with side support system, which is safe and reliable.

● the whole system adopts imported waterproof connectors, and all wires and cables are reliably protected, greatly improving the reliability of the electrical system.

● pedal safety switch adopts non basic proximity switch, which is safe and reliable.

● the battery is fixed safely and reliably.

05 / safety

● the driving speed decreases automatically with the increase of steering angle

● the station driving pedal has a safety switch, which can effectively prevent misoperation.

● it has release braking, reverse braking and three emergency braking functions to ensure driving safety.

● it has the function of slope anti sliding to ensure safe operation.

06 / maintenance

● AC motor is carbon free and maintenance free, which greatly saves the use cost.

● integrated electric quantity display, machine hour and fault self diagnosis table to facilitate maintenance.

● the cover can be fully opened, and the components are clear at a glance, which makes the maintenance of the whole machine very convenient.

● all rotating shafts are equipped with lubricating shaft sleeves and oil cups, which are convenient for maintenance and long service life.

产品配置 PRODUCT CONFIGURATION

Standard configuration

AC drive motor

Curtis controller

Electronic steering system

Inching device (both left and right sides)

Tool box

Emergency power off switch

Safety shock pedal

Adjustable height cushion

Battery side out

Standard battery

Electricity meter

Polyurethane tire

Multi function handle

horn

Optional configuration

Rubber tire

Alarm lamp

Working headlamp

guardrail

Uncoupling device without leaving the seat

Various hook heights

Large capacity battery

Anti collision rubber strip

reflector

产品参数 PRODUCT PARAMETER

● If the products and specifications are changed due to improvement, they will be subject to the physical object without further notice.

售后服务Customer Service

● Please contact the nearest subsidiary and authorized distributor of Hangcha Group Co., Ltd.
